Settings

Settings are used to control the general settings, Extension installation, file storage, about and authorization information of the current unmanned Laiye Automation Worker.

General settings

Exit setting is used to set whether the Laiye Automation Worker client will exit directly or minimize to the system task bar notification area when it is closed. If "no more prompt" is checked, no prompt will be given when closing; On the contrary, a prompt will pop up for confirmation each time.

Extension installation

At present, Laiye Automation Worker provides the installation of Extensions such as Extension Manger, chrome Extension, Firefox Extension, Java Extension, Citrix Extension, Microsoft Remote Desktop Extension, new Microsoft edge Extension, 360 secure browser Extension, 360 speed browser Extension, Clone Extension and User Guide document.

The Extension Manger is used to centrally manage the installation and uninstallation of the local Extensions of the Device.

The Extensions is used to communicate with Google Chrome, Firefox, Java Applications, Citrix desktop, Microsoft Windows remote desktop, new Microsoft edge browser, 360 security browser, 360 speed browser and Clone running services, providing support for automatic operation.

The Extensions supports operations such as installation and uninstallation. For details, see the "User Guide" corresponding to the Extension. Click this button to open the directory of the operation guide file corresponding to the Extension. The Extensions guide file not only contains the installation steps, startup methods and tool usage of the Extensions, but also the steps to solve common problems in the use of the Extensions.

Chrome Extension

  1. Chrome Extension is a browser Extension for Chrome browser automation;

  2. If it is not installed, the Extension is displayed as "Install". Click the "Install" button to install the chrome Extension. After the installation is successful, the button will automatically switch to "uninstall". Click the button to uninstall the Extension;

  3. The Extension has released a new version, which can be upgraded by clicking the "upgrade" button in the Extensions;

  4. For details, click the "User Guide →" button to view the User Guide of chrome Extension.

Firefox Extension

  1. For Firefox browser automation;

  2. If it is not installed, the Extension will be displayed as "Install". Click the "Install" button to install the Firefox Extension. After the installation is successful, the button will automatically switch to "uninstall". Click the button to uninstall the Extension;

  3. The Extension has released a new version, which can be upgraded by clicking the "upgrade" button in the Extensions;

  4. For details, click the "User Guide →" button to view the User Guide for Firefox Extension.

Java Extension

  1. Automation plug-ins for Java based Applications;

  2. If the Extension is not installed, it will be displayed as "Install". Click the "Install" button to install the Java Extension. After the installation is successful, the button will automatically switch to "uninstall". Click the button to uninstall the Extension;

  3. The Extension has released a new version, which can be upgraded by clicking the "upgrade" button in the Extensions;

  4. For details, click the "User Guide →" button to view the User Guide for Java Extension.

Matters needing attention:

  1. Ensure that JRE (Java runtime environment) environment is installed in the system environment. If JRE is not installed, you can open the link in the browser https://www.java.com/en/download/ , download and install.

  2. Ensure permissions when installing Java Extension \>= Permissions during JRE installation. For example, the Current Windows login user is user. If the JRE environment is installed under this user account, the current computer login user account must be user or an account with permissions greater than user when installing Java Extension, such as administrator account.

Citrix Extension

  1. Applicable to Laiye Automation Worker version 6.0.0 and above, and used for Citrix Applications and Citrix desktop automation;

  2. Citrix Extensions consists of client side and server side. In short, the client side and server side of Extensions communicate based on virtual channel protocol, so as to realize the automation of Citrix Applications and Citrix desktop program;

  3. Citrix here only includes the client side. If it is not installed, the Extension will be displayed as "Install". Click the "Install" button to install the Extension on the client side. After the installation is successful, the button will automatically switch to "uninstall". Click the button to uninstall the Extension;

  4. The server side can automatically install Citrix Extension by installing the Extension Manger on the specified remote desktop target machine. If you want to automate the Chrome browser, Firefox browser and Java application in the remote desktop, you also need to install the corresponding Extensions through the Extension Manger;

  5. The Extension has released a new version, which can update the corresponding version of Laiye Automation Worker and Extension Manger. Click the "upgrade" button in the Extensions to upgrade;

  6. For details, click the "User Guide →" button to view the User Guide of Citrix Extension.

Microsoft Remote Desktop Extension

  1. Applicable to Laiye Automation Worker version 6.0.0 and above, and used for Microsoft Windows remote desktop automation;

  2. Windows remote desktop Extensions is composed of client and server. In short, the client and server of Extensions communicate based on virtual channel protocol, so as to realize the automation of windows remote desktop;

  3. The windows remote desktop Extension here only includes the client side. If it is not installed, the Extension will be displayed as "Install". Click the "Install" button to install the Extension on the client side. After the installation is successful, the button will automatically switch to "uninstall". Click the button to uninstall the Extension;

  4. The server side can automatically install the windows remote desktop extension by installing the Extension Manger on the specified remote desktop target machine. If you want to automate the Chrome browser, Firefox browser and Java application in the remote desktop, you also need to install the corresponding Extensions through the Extension Manger;

  5. The Extension has released a new version, which can update the corresponding version of Laiye Automation Worker and Extension Manger. Click the "upgrade" button in the Extensions to upgrade;

  6. For details, click the "User Guide →" button to view the User Guide of windows remote desktop Extension.

New Microsoft Edge Extension

  1. New Microsoft edge Extension is a browser Extension for new Microsoft edge browser automation;

  2. If it is not installed, the Extension is displayed as "Install". Click the "Install" button to install the new Microsoft edge Extension. After the installation is successful, the button will automatically switch to "uninstall". Click the button to uninstall the Extension;

  3. The Extension has released a new version, which can be upgraded by clicking the "upgrade" button in the Extensions;

  4. For details, click the "User Guide →" button to view the User Guide of the new Microsoft edge Extension.

360 secure browser Extension

  1. 360 secure browser Extension is a browser Extension for 360 secure browser automation;

  2. If it is not installed, the Extension will be displayed as "Install". Click the "Install" button to install the 360 secure browser Extension. After the installation is successful, the button will automatically switch to "uninstall". Click the button to uninstall the Extension;

  3. The Extension has released a new version, which can be upgraded by clicking the "upgrade" button in the Extensions;

  4. For details, click the "User Guide →" button to view the User Guide of 360 secure browser Extension.

360 speed browser Extension

  1. 360 speed browser Extension is a browser Extension for 360 speed browser automation;

  2. If it is not installed, the Extension will be displayed as "Install". Click the "Install" button to install the 360 speed browser Extension. After the installation is successful, the button will automatically switch to "uninstall". Click the button to uninstall the Extension;

  3. The Extension has released a new version, which can be upgraded by clicking the "upgrade" button in the Extensions;

  4. For details, click the "User Guide →" button to view the User Guide of 360 speed browser Extension.

Clone Extension

  1. Automation plug-in for Clone service program;

  2. If it is not installed, the Extension is displayed as "Install". Click the "Install" button to install the Clone Extension. After the installation is successful, the button will automatically switch to "uninstall". Click the button to uninstall the Extension;

  3. The Extension has released a new version, which can be upgraded by clicking the "upgrade" button in the Extensions;

  4. For details, click the "User Guide →" button to view the User Guide of Clone Extension.

File storage

File storage, including viewing, changing and opening folders of Process storage directory, log storage directory and screen recording storage directory.

You can change the storage location through "change directory" and view the file content through "open folder".

Language settings

Language settings support simplified Chinese and English.

About

About, including Laiye Automation Worker version number, official service hotline and website, as well as user agreement and copyright information.

When there is an updated version on the Laiye RPA Commander, the "version upgrade" button and prompt will be displayed. Please update as needed.

Authorization information

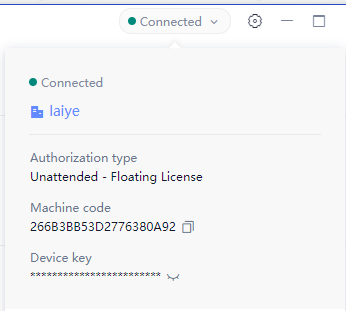

Unattended - Floating License, click the title bar "Connected" at the top of the Laiye RPA Worker Hub to view it, as shown in the following figure.

Minimize

If you click the "minimize" icon in the upper right corner of the client window of the Laiye RPA Worker Hub, the window will be minimized.

When the local desktop unattended Laiye Automation Worker runs the Process, the Laiye RPA Worker Hub window is minimized by default.

After running the Process, the Laiye RPA Worker Hub window will restore the window size or maintain the minimized state according to the running settings.

Maximize

If you click the "maximize" icon in the upper right corner of the client window of the Laiye RPA Worker Hub, the window will be maximized.

Close

If you click the "close" icon in the upper right corner of the client window of the Laiye RPA Worker Hub, the main interface window will be closed.

Note: closing the client main interface window of the Laiye Automation Worker Hub is only to close the display window of the unattended Laiye Automation Worker to the user, and the unattended Laiye Automation Worker will continue to work normally. If you want to stop the unattended Laiye Automation Worker, you can click "connected" in the title bar and click "exit authorization" in the pop-up "authorization page".
